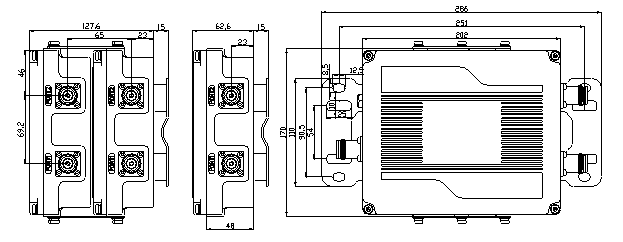

- 外形图
-
Part No. 80108B Electrical Frequency range (MHz) Port1 690-806 Port2 824-960 Insertion loss (dB) ≤0.5 Isolation(dB) ≥50 Return loss/VSWR ≤-20dB/1.22 Intermodulation (dBc) ≤-150/155/160 (with 2×20W) Impedance (Ω) 50 Ω Input power (W) ≤200 W(avg.) DC/AISG By-pass(max. 3000mA) Lightning protection 10KA; 10/350μs pulse Environmental Operation temperature -20°C to +65 °C Storage temperature -40 °C to +85 °C Relative humidity 5% - 95% Application Indoor or outdoor (IP67) S型曲线图 原理图
Code Type DC pass Weight(kg) Dimensions (mm) Connectors 8010870 Single DC pass all ≤2.8 202*167*62 4.3-10 Female 8010871 Double DC pass all ≤5.6 202*167*127 4.3-10 Female 8010855 Single DC pass all ≤2.8 202*170*62 7/16 Female 8010851 Double DC pass all ≤5.6 202*170*127 7/16 Female 包装信息
单机
Item Specifications(mm) PcS Innerbox Outerbox Qty of product Weight(kg) Innerbox 385*255*124 1 - - 1 2.8 Outerbox 540*400*250 1 4 - 4 12.3 transport 1000*1200*1370 1 80 20 80 260 双机
Item Specifications(mm) PcS Innerbox Outerbox Qty of product Weight(kg) Innerbox 385*255*180 1 - - 1 5.6 Outerbox 545*410*420 1 4 - 4 23.8 transport 1000*1200*1380 1 48 12 48 300 -
Test Item
SPL
Intermodulation analyzer
LOT
Network analyzer
☑Normal temperature index
☑
Kaelus IQA-0703C （758-803）
☑
☑Agilent E5071C
☑Cryogenic Index
□
KaelusIBA-0790B（791-821）
□
□Agilent E5061B
☑High Temperature Index
☑
KaelusIQA-0901C（925-960）
☑
□Agilent E5063A
☑Imitative vibration test
□
KaelusIQA-1800C（1805-1880）
□
□Agilent E5071B Four-channel
☑Power test
□
KaelusIQA-21001C（2110-2170）
□
/
☑Salt spray test
□
PIMTEK2600SBT（2620-2690）
□
Agilent calibrator
☑Rain Test
□
PIMTEK800S（869-894）
□
☑machinery 80532F
☑intermodulation Test
□
PIMTEK1900SBT（1930-1990）
□
□machinery 85033E
☑air-tight test
/
□machinery 85054D
☑Visual inspection
/
□Electron N4431B
-
