Electrical & Mechanical Specifications
Part No.
83506B
Type
2-WayPower
Splitter
3-WayPower
Splitter
4-WayPower
Splitter
Frequency(MHz)
698-3800
698-3800
698-3800
Split Loss
≤3
≤4.8
≤6.5
Insertion Loss
≤0.3 dB
≤0.3 dB
≤0.3 dB
VSWR ≤1.25 ≤1.25 ≤1.3 Intermodulation
≤150/155/160dBc (with 2×20W)
Impedance
50 Ω
Input power
≤300W (avg.)
Operating temperature
-25°C to +75°C
Storage temperature
-40°C to +85°C
Relative 5% - 95%
Application
Outdoor (IP65) Connector Type
N Female /4.3-10 Female/DIN Female

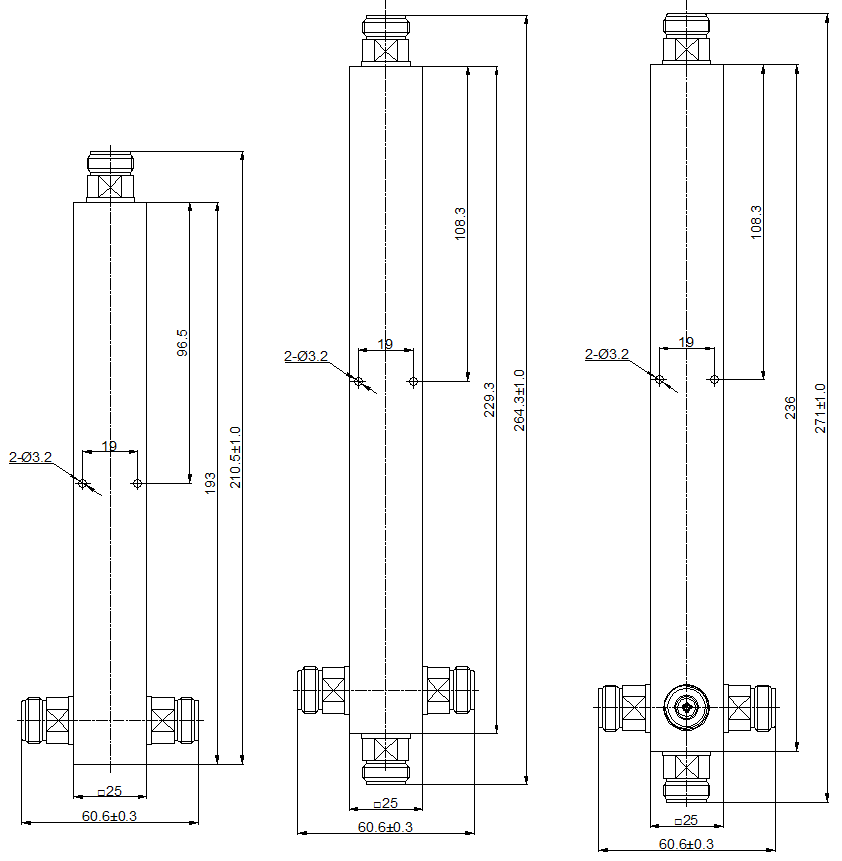

Schematic diagram
-
