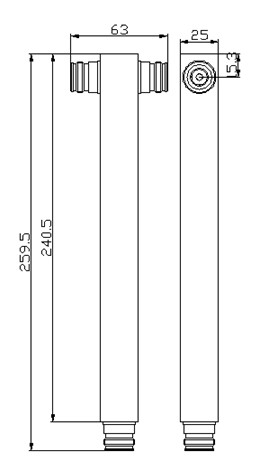

- 外形图
-
Electrical & Mechanical Specifications
Part No.
83091
Type
2-WayPower splitter
Frequency(MHz)
617-6000
Split Loss ≤3
Insertion loss
≤0.3 dB
VSWR
≤1.25
Intermodulation (dBc)
≤160dBc (3rd order; with 2×20W)
Impedance(Ω)
50 Ω
Input power (W)
≤300 W(avg.)
Operating temperature
-20°C to +65 °C
Storage temperature
-40°C to +85 °C
Relative humidity
5% - 95%
Application
Outdoor(IP65) Connector Type
N Female /4.3-10 Female/DIN Female

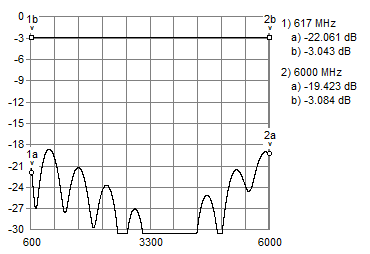

Typical Attenuation Curves

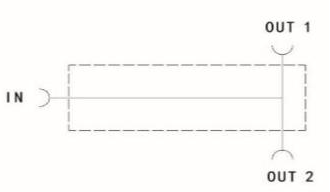

Schematic diagram
Type Part No. Weight（kg） Dimensions（mm） Connectors 2-Way
8309191
≤0.55
240*26*26
DIN- Female
2-Way
8309182
≤0.55
240*26*26
4.3-10 Female
2-Way
8309190
≤0.45
240*26*26
N- Female
Packaging information
Item
Specifications(mm) PCS
Inner box(pcs)
Outer box(pcs)
Qty of products(pcs)
Weight(kg)
Inner box
290x80x35
1 /
/
1 0.46 Outer box
445x305x260
1 30
/
30
14 Transport
1000*1200*1600
1 900
30 900
420 -
测试规范
测试项目
SPL
互调分析仪
LOT
网络分析仪 ☑常温指标
☑
Kaelus IQA-0703C (758-803)
□
☑Agilent E5071C
☑低温指数
☑
Kaelus IBA-0790B(791-821)
□
□Agilent E5061B
☑高温指数
☑
Kaelus IQA-0901C(925-960)
☑
□Agilent E5063A
☑模拟振动测试
☑
Kaelus IQA-1800C(1805-1880)
☑
□Agilent E5071B 四通道
☑电源测试
☑
Kaelus IQA-21001C(2110-2170)
□
/ ☑盐雾测试
☑
PIMTEK 2600SBT(2620-2690)
☑
Agilent calibrator
☑雨水测试
☑
PIMTEK 800S(869-894)
□
☑machinery 80532F
☑互调测试
☑
PIMTEK 1900SBT(1930-1990)
□
□machinery 85033E
☑气密性测试
/ □machinery 85054D
☑目检
/ □Electron N4431B
-
